Garment Factory Layout & Sewing Line Setup — How to Design a Production Floor That Actually Works

Our first factory layout was designed by the landlord. Cutting was on one end, sewing in the middle, and finishing upstairs. Bundles traveled 200 meters to complete a single garment. Operators walked back and forth between floors carrying stacks of cut pieces. The supervisor spent half his day not supervising — just physically moving work from one section to another.

It took us three months to realize that the layout was costing us more than any machine breakdown or operator absence ever could. We were losing 45 minutes per day per operator just to transport — walking, carrying, waiting for bundles to arrive from another floor. Multiply that across 60 operators and you get 45 hours of wasted labor every single day. That is the equivalent of six full-time operators doing nothing but walking.

When we finally redesigned the floor, output went up 18% without adding a single machine or operator. The only thing that changed was where things were placed. That experience taught me something most factory owners learn too late: layout is not an administrative decision. It is a production decision.

Why Layout Matters More Than You Think

In lean manufacturing, transport is one of the seven wastes — activities that consume resources but add zero value to the product. The customer does not care how far a bundle traveled inside your factory. They care about the finished garment. Every meter a bundle moves between operations is a meter of pure waste.

But transport is not the only waste that bad layout creates. It amplifies almost every other waste too:

• Waiting: When cutting is far from sewing, operators wait for bundles to arrive. When finishing is on a different floor, completed bundles sit in piles waiting to be carried up.
• Excess WIP: Long distances between operations mean more bundles in transit at any given moment. More bundles in transit means more work-in-progress inventory sitting on your floor doing nothing.
• Motion: Operators and supervisors walking between sections instead of working. A supervisor who has to walk 100 meters to check on the cutting room is a supervisor who checks on the cutting room twice a day instead of ten times.
• Defects: When inspection is far from the sewing line, defective pieces travel further before being caught. The longer a defect travels, the more rework piles up.

A good factory layout does the opposite. It creates a straight-line flow where bundles move in one direction — from raw material to finished garment — with minimal travel, minimal handling, and maximum visibility for the people managing it.

The Three Common Garment Factory Layouts

Most garment factories use one of three basic layout patterns. Each has trade-offs, and the right choice depends on your factory size, building shape, product mix, and order volume.

1. Straight-Line Layout

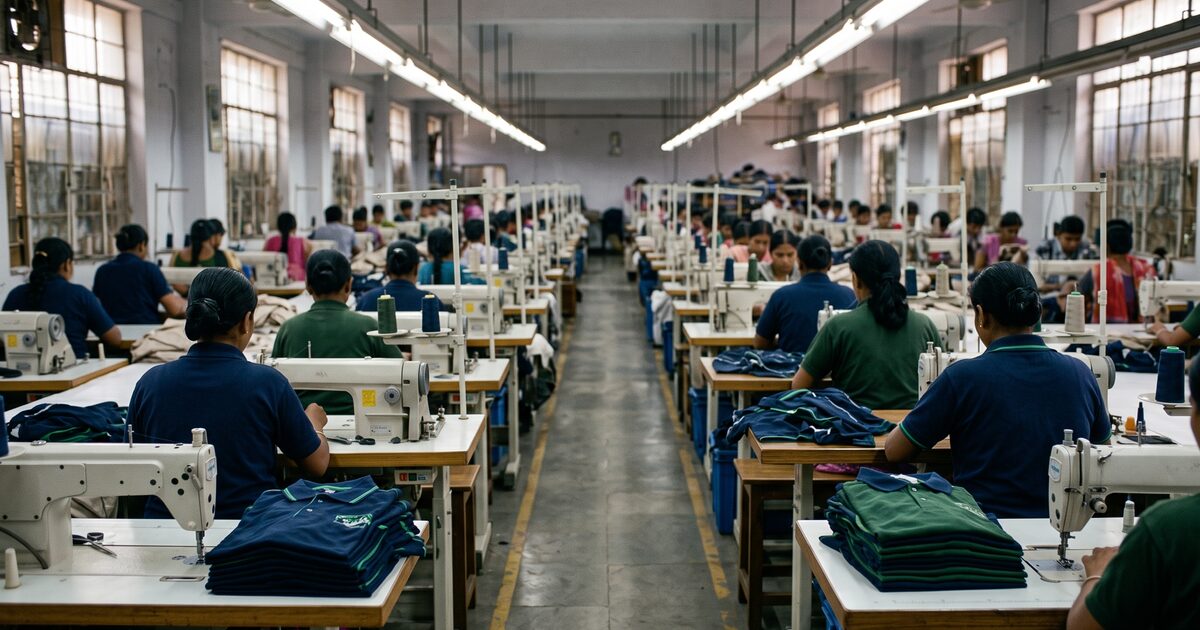

This is the most common layout in CMT factories, and for good reason. Machines are arranged in a single line following the garment assembly sequence. Raw cut pieces enter at one end. Finished garments exit at the other. Every operation happens in order, and bundles move in one direction only.

Best for: Factories running single-style or low-variety production. If you are making 3,000 pieces of the same polo shirt, a straight line is hard to beat. The flow is simple, the supervisor can see the entire line, and there is no confusion about where bundles should go next.

Drawback: If you run multiple styles simultaneously with different operation sequences, a straight line becomes rigid. You end up with operators sitting idle because their operation is not needed for the current style, while others are overloaded. The line also gets long — a 40-operator straight line can stretch 30+ meters, which means the supervisor at one end cannot see what is happening at the other.

2. U-Shaped Layout

The U-shape bends the production line so that the start and end are close together. Cut pieces enter on one side, travel along the line, curve around, and finished garments exit near where they started. The supervisor stands in the middle of the U and can see both the beginning and end of the line.

Best for: Small to medium factories (20-60 operators) where floor space is limited. The U-shape makes excellent use of rectangular rooms. It also makes it easy for one supervisor to manage the entire line because the maximum distance from any station to the supervisor is half of what it would be in a straight line.

Drawback: The curve point in the U can become a bottleneck if not managed carefully. Bundles tend to pile up at the turn because the physical flow changes direction. You also need wider aisles at the curve to allow bundle movement, which eats floor space.

3. Modular or Cell Layout

Instead of one long line, you create small self-contained cells of 8-12 operators. Each cell handles a complete section of the garment or even a complete garment. Operators within a cell are cross-trained and can move between machines as needed.

Best for: Factories running high variety — many styles, small quantities, frequent changeovers. Each cell can be configured for a different style without disrupting the rest of the factory. This is also the layout that Toyota made famous, and it works well when operators are multi-skilled.

Drawback: Requires cross-trained operators, which most garment factories in South Asia do not have. If your operators can only run one machine type, modular layout creates inefficiency because some machines in each cell will be idle depending on the style. Training takes time and costs money.

How to Design Your Sewing Line: Step by Step

Whether you choose straight, U-shaped, or modular, the process of designing the actual line is the same. Here is how we do it.

Step 1: Start with the operation breakdown

Before you place a single machine, you need to know every operation required to assemble the garment. Get your operation bulletin — the list of every sewing step with its SAM (Standard Allowed Minutes). If you do not have a formal operation bulletin, sit with your most experienced operator and list every step from first stitch to last.

For a basic polo shirt, you might have 25-30 operations. For a formal shirt with cuffs, collar band, and placket, you could have 40-50. Each operation has a SAM, and that SAM determines how many operators you need at each station.

Step 2: Calculate operators per operation

Divide the target output per hour by the capacity of each operation. If your target is 100 pieces per hour and the collar attachment operation has a SAM of 1.2 minutes, then one operator can do 50 pieces per hour at 100% efficiency. At a realistic 70% efficiency, that is 35 pieces per hour. You need three operators on collar attachment to hit your target. Do this calculation for every operation.

This is where most factories go wrong. They allocate operators by gut feel instead of by calculation. The result is always the same: some stations have too many operators and some have too few. The line runs at the speed of the slowest station, and everyone else waits.

Step 3: Arrange operations in assembly sequence

Place operations in the order the garment is assembled. This sounds obvious, but I have seen factories where the sleeve attachment station is physically located before the shoulder join station because that is where the overlock machine happened to be. The bundles had to travel backwards to reach the right operation.

Follow the garment. If the construction sequence is: join shoulders, attach sleeves, close sides, attach collar, hem — then your line should flow in exactly that order.

Step 4: Place feeding operations close to their join point

Many garments have sub-assemblies that are made separately and then joined to the main body. Pockets are made on a separate station and then attached. Collars are prepared and then joined. Cuffs are folded and stitched before being attached to sleeves.

These feeding operations should be physically close to the point where they join the main line. If pocket making is on the other side of the factory from pocket attachment, you are creating transport waste and WIP buildup. Place the pocket-making station right next to the pocket-attachment station. The completed pockets should travel less than two meters to reach the join point.

Step 5: Place inspection at critical points, not just the end

Most factories put a single quality check at the end of the line. By the time a defect is caught there, it has passed through 15-20 operations. The rework cost is enormous. You have to trace back to the operation where the defect was created, undo everything after it, fix it, and redo everything.

Place inline inspection after critical operations — collar attachment, placket stitching, zipper insertion, anything where a defect would be expensive to fix later. These inline checks do not need a dedicated operator. A roaming quality checker who visits three or four critical stations every 30 minutes is enough.

Cutting Room Placement

The cutting room should be near the factory entrance. Fabric rolls arrive from outside, and they are heavy — 20 to 40 kg per roll depending on the fabric type. Carrying them through the factory to reach a cutting room at the back makes no sense. Place cutting where fabric can be unloaded and moved in with minimal handling.

Never put cutting upstairs. I have seen factories do this because the ground floor was "too valuable" for cutting. The result: every fabric roll has to be carried up stairs or lifted by a hoist. Cut pieces have to be carried back down to reach sewing. It doubles the handling labor and creates a bottleneck every morning when cutting needs to feed the sewing lines.

The ideal flow is: fabric comes in the door, goes directly to cutting, cut bundles flow out the other side of the cutting room directly onto the sewing floor. One-way flow, no backtracking, no elevation changes.

Your cutting table orientation matters too. Place the table so that the spreading direction faces the sewing floor. When the cutter finishes a lay, the bundled pieces move forward toward sewing — not backward toward the fabric storage. Small detail, but it eliminates one handling step per bundle.

Support Areas: Thread, Trim, Maintenance

Thread and trim storage should be on the sewing floor, not in a separate room. I know it looks tidier to have a dedicated store room. But every time an operator runs out of thread or needs a new zipper, they have to walk to that room, wait if someone else is there, and walk back. Multiply that by 60 operators changing thread three or four times a day, and you have lost another 30 minutes of production daily.

Instead, set up a small thread and trim station at the head of each sewing line. Stock it with the threads and trims needed for the current style. The line supervisor or a helper replenishes it from the main store once a day. Operators walk two meters to get what they need instead of twenty.

Maintenance should be accessible but not in the middle of the sewing floor. A small workshop area at the side of the production floor works best. The mechanic can reach any machine within a minute, and spare parts are close. But the noise and mess of machine repair stays out of the sewing area.

Pressing and finishing should come after sewing in a one-way flow. Garments go from the last sewing station to quality check to pressing to packing. They should never have to travel backwards or cross the sewing floor to reach finishing. If your finishing section is between cutting and sewing, you have a problem — finished garments and raw cut pieces are crossing paths, creating confusion and increasing the risk of mix-ups.

The Factory Floor We Built

Let me describe our actual factory layout so you can see how these principles come together in a real building with real constraints.

Our factory is in a rectangular building, roughly 25 meters by 40 meters, single floor. Here is the flow:

1. Entrance and fabric storage — Fabric rolls are stored within 5 meters of the loading entrance. No stairs, no corridors. Rolls come off the vehicle and go straight onto the storage racks.
2. Cutting room — Directly adjacent to fabric storage. Two cutting tables, 8 meters each. The spreading direction faces the sewing floor. Cut pieces are bundled, labeled with QR codes on a thermal printer right at the cutting table, and placed in staging racks that face the sewing lines.
3. Bundle staging area — A 3-meter-wide zone between cutting and sewing. This is where labeled bundles wait in color-coded racks before being pulled onto the sewing line. The supervisor picks bundles from here based on the production plan. This buffer zone is critical — it prevents cutting from dumping bundles directly onto the line and overwhelming the first station.
4. Three sewing lines — Each line is a modified straight-line layout, roughly 20 meters long. Lines are spaced 3 meters apart with clear aisles. Each line handles one style at a time. Overlock machines at the front, single-needle in the middle, specialty machines (buttonhole, button attach, kansai) at the end. Feeding stations (pocket making, collar preparation) are placed perpendicular to the main line at the point where they join.
5. QR scanning stations — At the entry point of each line, there is a scanning station where the first operator scans the bundle QR code. This registers the bundle into the production tracking system. Subsequent scans happen at each operation using the operator's phone mounted on a small stand next to their machine.
6. TV monitor — A 43-inch display mounted on the wall at the end of Line 2, visible from all three lines. It shows the live production dashboard — pieces completed per line, current WIP levels, and any alerts. The supervisor checks it every time they walk past.
7. Inline quality checks — After collar attachment and after buttonhole placement. A roaming QC person covers these points on all three lines.
8. Finishing area — At the exit end of the building. Thread trimming, pressing, folding, and packing happen in sequence. Finished packed garments are staged near the exit door for dispatch.
9. PA speaker — Mounted at the ceiling in the center of the sewing area. Connected to a Raspberry Pi that plays automated announcements — break times, production targets reached, supervisor calls. This replaced the supervisor having to walk to each line and shout over machine noise.

The total distance a bundle travels from cutting to finished garment is roughly 45 meters. In our old layout, it was 200 meters. That difference is not just about distance — it is about time, handling, WIP, visibility, and control.

Mistakes to Avoid

I have visited dozens of garment factories in Nepal and seen the same layout mistakes repeated everywhere. Here are the ones that cost the most:

Dead corners where WIP piles up

Every factory has corners. Bundles gravitate to corners. If a machine is placed in a corner where the supervisor cannot see it, that corner becomes a WIP graveyard. Bundles pile up, nobody notices, and the line starves downstream. Keep corners clear or use them for storage, not for production operations.

Inspection table too far from the line

If the quality check table is more than 5 meters from the last sewing station, operators will stack finished bundles and carry them over in batches. This creates a delay between sewing and inspection, which means defects are caught later and rework piles up. The inspection table should be at the end of the line, within arm's reach of the last operator.

No space for bundle staging between operations

Every station needs a small space to hold incoming and outgoing bundles. Without it, bundles end up on the floor, on top of machines, under chairs — wherever the operator can find space. This creates mix-ups (wrong bundle, wrong color, wrong size) and slows down the operator because they have to search for their next bundle. A simple shelf or rack between every two stations solves this.

Power outlets not at machine positions

This sounds like a building issue, not a layout issue. But I have seen factories where machines are placed based on where the power outlets happen to be, not where the production flow needs them to be. The result is a layout dictated by electrical wiring instead of by production logic. When you set up a factory, run power to where the machines need to be, not the other way around. Extension cords draped across aisles are a safety hazard and a sign that the layout was an afterthought.

No aisle discipline

Aisles need to be at least 1.2 meters wide for bundle movement and at least 1.5 meters for main walkways. I have seen factories where aisles narrow to 60 centimeters because someone pushed a machine out or added a temporary table. Narrow aisles slow down bundle transport and create safety problems. Mark your aisles with tape on the floor and enforce them.

Mixing production flow with people flow

Operator walkways to restrooms, break areas, and the entrance should not cross the production flow. When operators walk through the sewing area to reach the exit, they bump into bundle racks, distract working operators, and create congestion. Design people flow around the production area, not through it.

When to Redesign Your Layout

You do not need to wait for a new building. Here are the signs that your current layout needs work:

• Supervisors spend more than 20% of their time walking between sections instead of managing
• WIP consistently piles up at the same two or three stations regardless of which style you are running
• Operators leave their machines to fetch bundles from another area more than twice per hour
• Your cut-to-pack cycle time is more than twice the total sewing SAM
• Quality rejections are high at operations that are physically far from the QC station
• You have bundles on the floor instead of on racks or shelves

If three or more of these apply to your factory, a layout redesign will pay for itself within the first month.

The best time to fix your layout is before you start production. The second best time is this weekend, when the machines are stopped and you can move them without losing output. Draw the new layout on paper first. Walk through the flow with your supervisor. Then move the machines, mark the aisles, and start Monday with a factory that actually flows.
